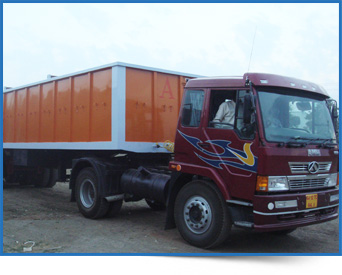

36 Feet Side Board Trailer |
Main Frame |
Main Frame Fabricated by Welding of St-52 or equivalent of size 400*160*12*8mm/ standard rolled beams; Cross Member & side frame as per IS:2062 |
Floor |
M.S. Chequered Floor 4mm thick |
Axle |
10 Stud. axie capacity 12000kg/axie at speed 105 km/hr |
Suspension |
Over Slung, tandem multi-leaf spring suspension |
King Pin |
Standard Welding type Size 50.8 mm |
Landing Gear |
Operated standard 80 ton capacity/ pair |
Brake System |
Full air Brake, double line compressed air system. The Compressed air to be taken from truck tractor through air hoses and connectors. |
Rim |
7.5*20 10 Std |
Tyres |
10.00-20 |
Electric System |
7 way socket, Tail Lamp with Guards |
Painting |
1 coat of anti- corrosive primer
2 coat of finish paint |
Addition Fitments |
Rear Bumper, SUPD & RUPD |
