Main Frame

Main Frame Fabricated by Welding of St-52 or equivalent of size 400*160*12*8mm/ standard rolled beams; Cross Member & side frame as per IS:2062

Floor

M.S. Chequered Floor 4mm thick

Axle

10 Stud. axie capacity 12000kg/axie at speed 105 km/hr

Suspension

Over Slung, tandem multi-leaf spring suspension

King Pin

Standard Welding type Size 50.8 mm

Landing Gear

Operated standard 80 ton capacity/ pair

Brake System

Full air Brake, double line compressed air system. The Compressed air to be taken from truck tractor through air hoses and connectors.

Rim

7.5*20 10 Std

Tyres

10.00-20

Electric System

7 way socket, Tail Lamp with Guards

Painting

1 coat of anti- corrosive primer
2 coat of finish paint

Addition Fitments

Rear Bumper, SUPD & RUPD

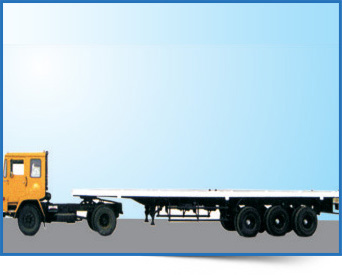

Flat Bed

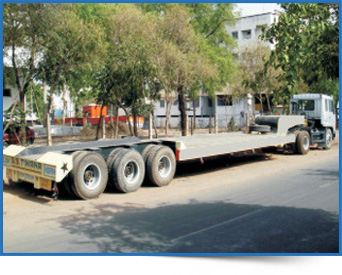

Low Bed

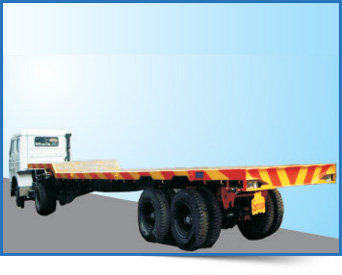

Semi Low Bed
